GO LONG. GO FAST. SUPERLIGHT AND SILKY SMOOTH, THE FLAGSHIP SERIES OF THE NEW DEFY RANGE IS BACK TO RECLAIM ITS TITLE AS THE PINNACLE OF ENDURANCE ROAD. IT’S THE PERFECT CHOICE FOR THE SPORTIVE OR GRAN FONDO THAT’S CIRCLED ON YOUR CALENDAR.
KEY PERFORMANCE FACTORS
Functional Simplicity
Free of cumbersome gimmickry, the frameset is one of the lightest in its category. With a perfect balance of high-performance reactivity and all-day comfort, it offers a “less is more” experience for modern endurance road riding.
Engineered Compliance
Advanced SL-grade composite frame and fork are specifically engineered for endurance road riding, delivering a smooth and efficient ride quality that minimises fatigue on long rides. The new D-Fuse components work together to further absorb road shocks and vibrations.
Total Control

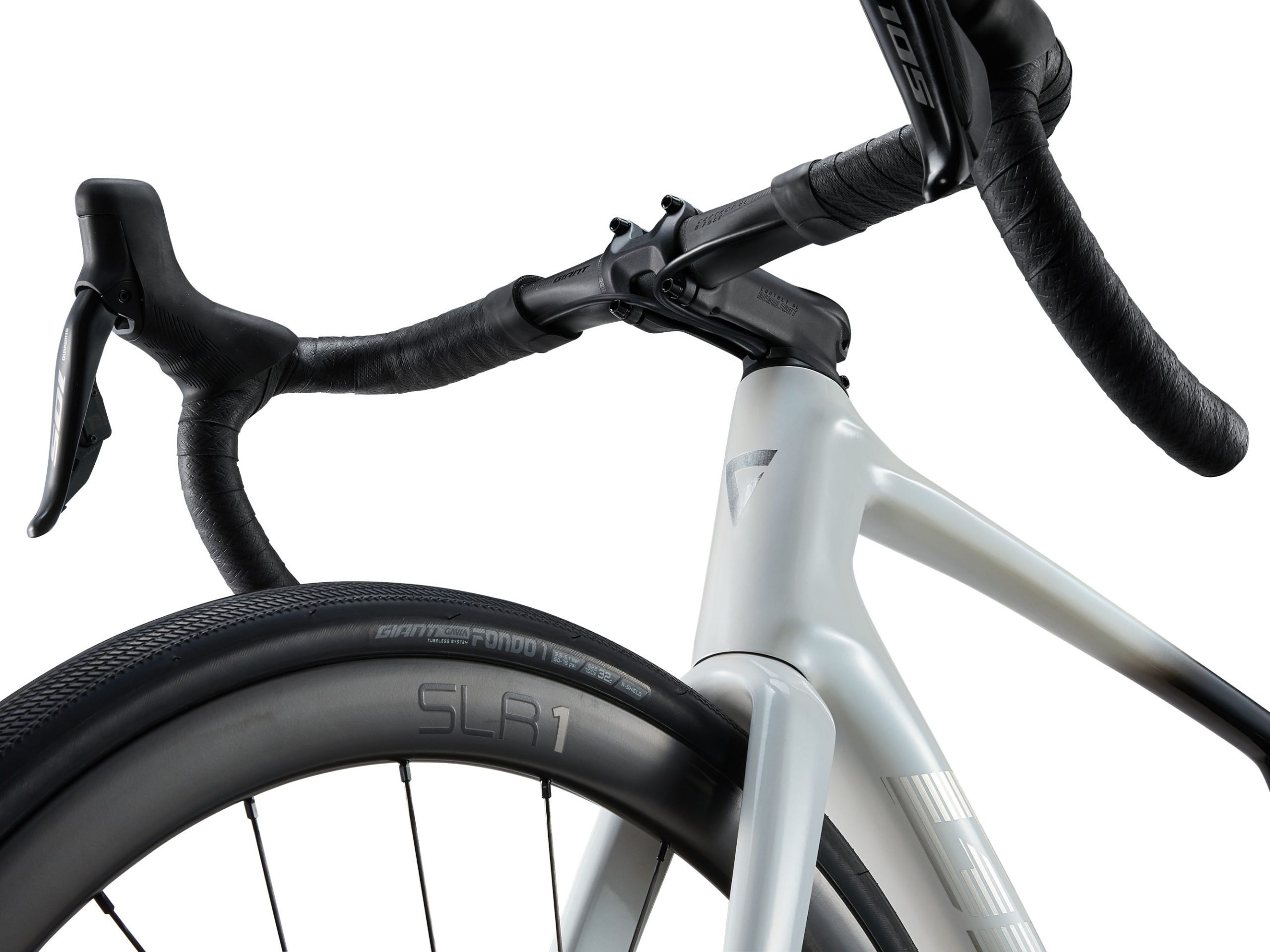

A new Contact D-Fuse handlebar features ergonomic shaping and an 8-degree flare for comfort and control on all-day rides. Wide, hookless carbon rims (22.4mm inner width) are optimised for high-volume tubeless tyres (up to 38mm), and a 36mm rim depth offers stable, predictable handling in crosswinds.
Sizing Guide
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.
Defy Advanced, Advanced Pro & Advanced SL (5th Gen)
|
|
XS |
S |
M |
ML |
L |
XL |
| Seattube length |
410 |
445 |
480 |
515 |
535 |
565 |
| Seattube angle (degrees) |
74.5 |
74.0 |
73.5 |
73.0 |
73.0 |
73.0 |
| Toptube length |
515 |
530 |
545 |
560 |
575 |
595 |
| Headtube length |
120 |
140 |
150 |
175 |
195 |
215 |
| Headtube angle (degrees) |
70.50 |
71.75 |
72.50 |
72.50 |
72.50 |
72.50 |
| Fork rake |
50 |
50 |
50 |
50 |
50 |
50 |
| Trail |
71.6 |
63.4 |
58.6 |
58.6 |
58.6 |
58.6 |
| Wheelbase |
995.2 |
994.4 |
997.7 |
1010.0 |
1025.2 |
1040.4 |
| Chainstay length |
420 |
420 |
420 |
420 |
420 |
420 |
| Bottom bracket drop |
75 |
75 |
75 |
70 |
70 |
70 |
| Stack |
527 |
541 |
558 |
577 |
596 |
615 |
| Reach |
368.9 |
374.9 |
379.8 |
383.7 |
392.9 |
402.0 |
| Standover height |
705 |
733 |
762 |
796 |
814 |
841 |
| Handlebar width |
400 |
400 |
420 |
420 |
440 |
440 |
| Stem length |
80 |
90 |
100 |
100 |
110 |
110 |
| Crank length |
170.0 |
170.0 |
172.5 |
172.5 |
175.0 |
175.0 |
| Wheel size |
700C |
700C |
700C |
700C |
700C |
700C |
Specifications
-
Sizes
XS, S, M, M/L, L, XL
-
Colours
Unicorn White/Black/Chrome
-
Frame
Advanced-grade composite, disc
-
Fork
Advanced SL-grade composite, full-composite OverDrive Aero steerer, disc
-
Shock
N/A
-
Handlebar
Giant Contact SL D-Fuse XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
-
Grips
Stratus Lite 3.0
-
Stem
Giant Contact SL AeroLight XS:80mm, S:90mm, M:100mm, M/L:100mm, L:110mm, XL:110mm
-
Seatpost
Giant SL D-Fuse, composite, -5/+15mm offset
-
Saddle
Giant Fleet SL
-
Pedals
N/A
-
Shifters
Shimano 105 Di2
-
Front Derailleur
Shimano 105 Di2
-
Rear Derailleur
Shimano 105 Di2
-
Brakes
Shimano 105 Di2 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm
-
Brake Levers
Shimano 105 Di2 hydraulic
-
Cassette
Shimano 105, 12-speed, 11×36
-
Chain
KMC X12L-1
-
Crankset
Shimano 105, 34/50 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
-
Bottom Bracket
Shimano, press fit
-
Rims
Giant SLR 1 36 Carbon Disc WheelSystem
-
Hubs
[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
-
Spokes
Sapim stainless
-
Tyres
Giant Gavia Fondo 1, tubeless, 700x32c (33.5mm), folding
-
Extras
computer mount, fender mount, water bottle cages, factory tubeless set up, 38mm max tyre size
- Weight
~7.80kg (Size M)
*All specifications and prices listed are subject to change without notice.
