Newly integrated components including the Contact AeroLight stem create a sleeker, more aero profile. The Variant seatpost adds just enough compliance for a balanced, race-tuned feel on the road, while generous tire clearance (up to 33mm) and compliant wheels keep you rolling with speed on smooth or bumpy roads.
KEY PERFORMANCE FACTORS
System Optimization

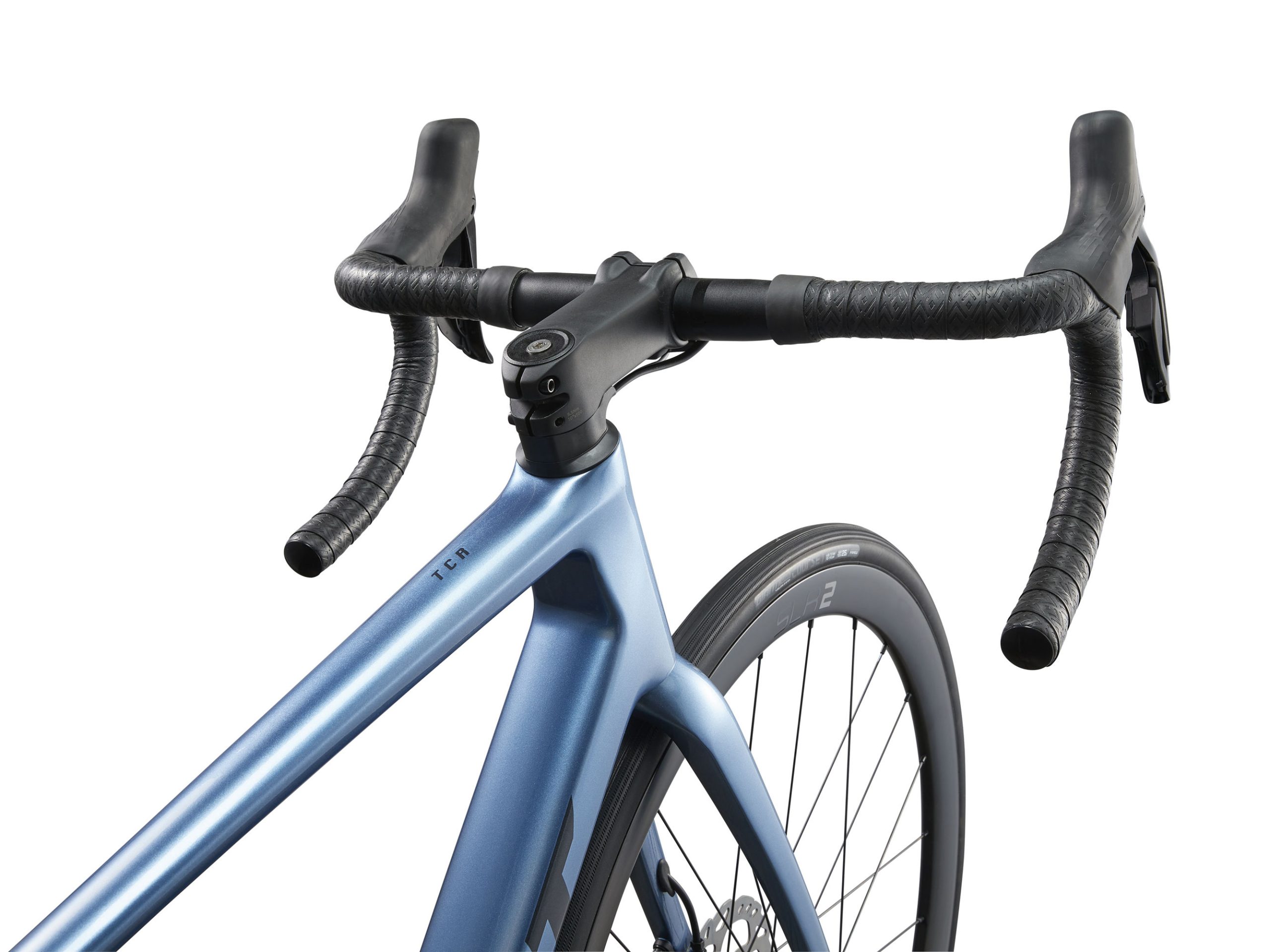

The frameset, wheels, cockpit and other parts were engineered, developed and tested together to perform as a system. The all-new Contact AeroLight stem allows for cable routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup.
Winning Efficiency
Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.
Integrated Aerodynamics
All tube shapes were engineered and developed using Computational Fluid Dynamics (CFD) modeling and wind-tunnel testing. From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous generation.
Sizing Guide
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.
TCR Advanced & Advanced Pro Disc (10th Gen)
|
|
XS |
S |
M |
ML |
L |
XL |
| Seat tube length |
425 |
445 |
470 |
500 |
530 |
560 |
| Seat tube angle (degrees) |
74.50 |
74.00 |
73.50 |
73.00 |
73.00 |
72.50 |
| Top tube length |
520 |
535 |
550 |
565 |
580 |
600 |
| Head tube length |
120 |
130 |
145 |
165 |
185 |
200 |
| Head tube angle (degrees) |
71.00 |
72.25 |
73.00 |
73.00 |
73.00 |
73.00 |
| Fork rake |
45 |
45 |
45 |
45 |
45 |
45 |
| Trail |
72 |
64 |
59 |
59 |
59 |
59 |
| Wheelbase |
976 |
977 |
980 |
991 |
1006 |
1020 |
| Chain stay length |
405 |
405 |
405 |
405 |
405 |
405 |
| Bottom bracket drop |
72 |
69.5 |
69.5 |
67 |
67 |
67 |
| Stack |
517 |
528 |
545 |
562 |
581 |
596 |
| Reach |
376 |
383 |
388 |
393 |
402 |
412 |
| Stand over height |
703 |
722 |
743 |
771 |
798 |
822 |
| Handlebar width |
400 |
400 |
420 |
420 |
440 |
440 |
| Stem length |
80 |
90 |
100 |
110 |
110 |
120 |
| Crank length |
170.0 |
170.0 |
172.5 |
172.5 |
175.0 |
175.0 |
| Wheel size |
700C |
700C |
700C |
700C |
700C |
700C |
Specifications
-
Sizes
XS, S, M, M/L, L, XL
-
Colors
Frost Silver
-
Frame
Advanced-Grade Composite, 12x142mm thru-axle, disc
-
Fork
Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
-
Shock
N/A
-
Handlebar
Giant Contact (XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm)
- Bar Tape
Giant Stratus Lite 2.0
-
Stem
Giant Contact AeroLight (XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm)
-
Seatpost

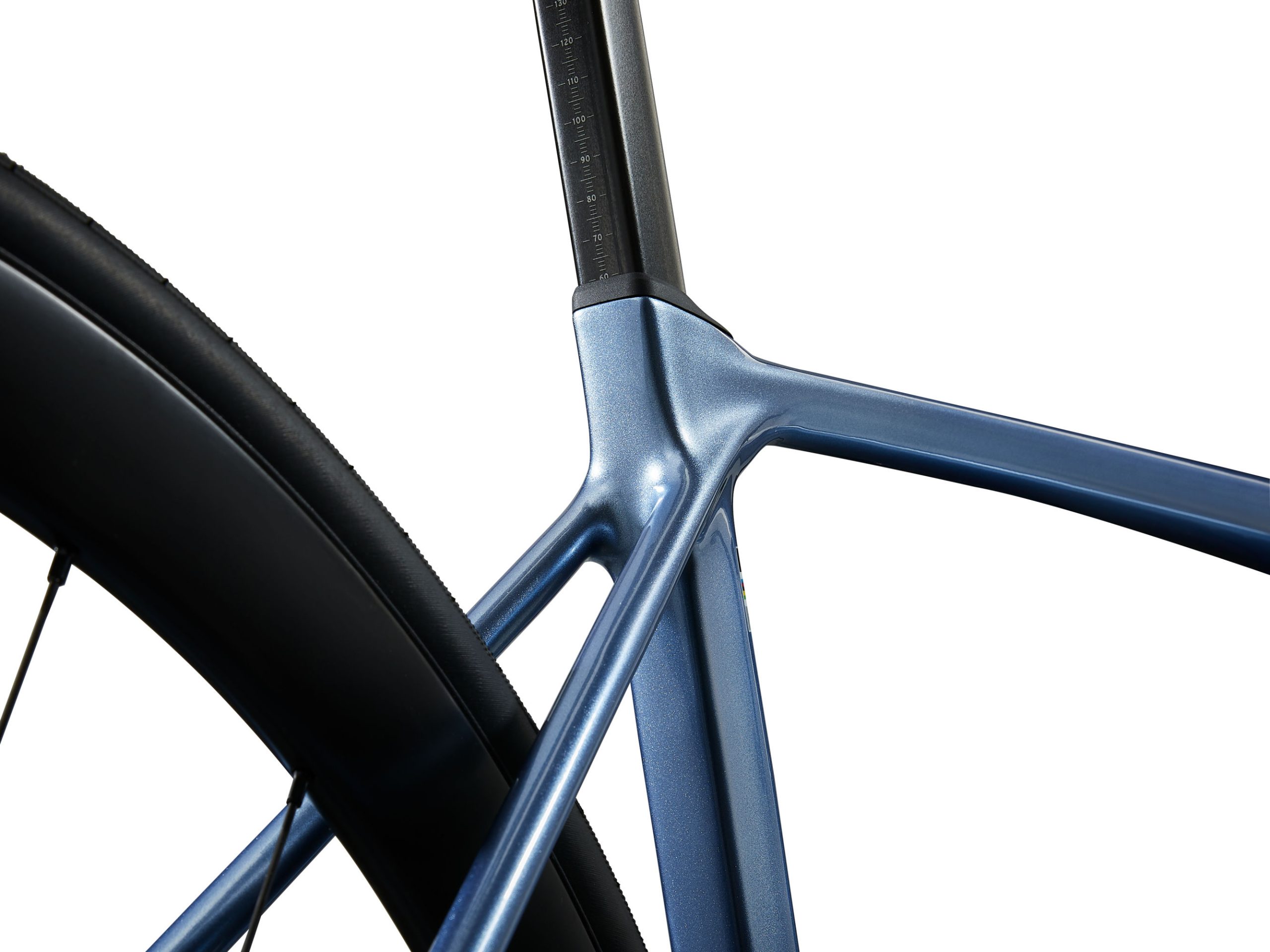

Giant Variant, composite, -5/+15mm offset
-
Saddle
Giant Approach
-
Pedals
N/A
-
Shifters
Shimano 105 Di2 ST-R7170
-
Front Derailleur
Shimano 105 Di2 FD-R7150
-
Rear Derailleur
Shimano 105 Di2 RD-R7150
-
Brakes
Shimano 105 Di2 hydraulic BR-R7170, Giant MPH rotors [F]160mm, [R]140mm
-
Brake Levers
Shimano 105 Di2 ST-R7170
-
Cassette
Shimano 105, CS-7100 12-speed, 11×34
-
Chain
KMC X12L-1
-

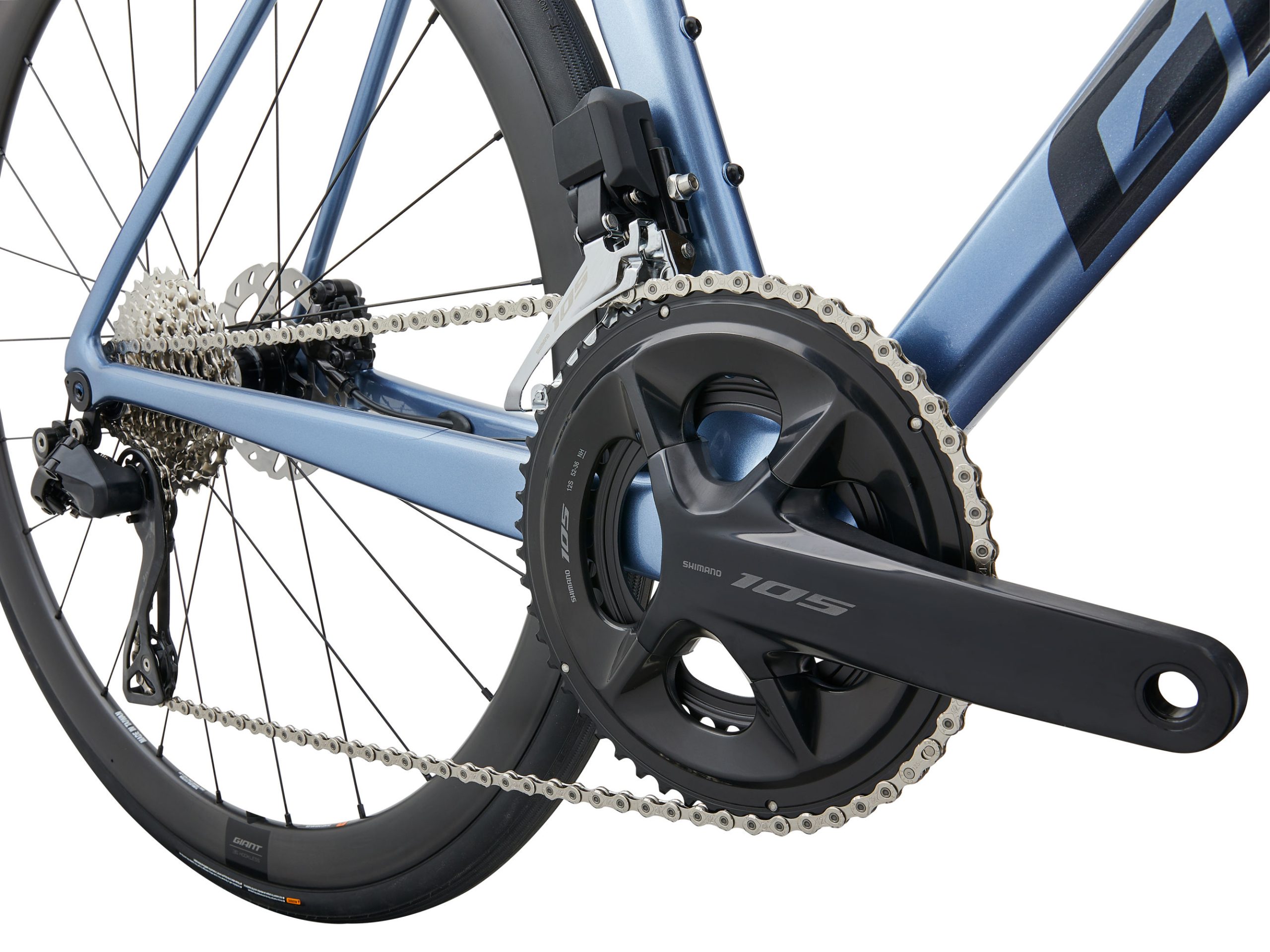

Crankset
Shimano 105 FC-R7100, 36/52 (XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm)
-
Bottom Bracket
Shimano, press fit
-
Rims
Giant SLR 2 36 WheelSystem, hookless rim, [F]36mm,[R]36mm
-
Hubs
[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle
[R] Giant Low Friction Hub, 30t pawl driver, CenterLock, 12mm thru-axle
-
Spokes
Sapim Sprint
-
Tires
Giant Gavia Course 1, tubeless, 700x25c (28mm), folding
- Extra
tubeless prepared, 33mm max tire size
- Weight
~8.28kg (Size S)
*All specifications and prices listed are subject to change without notice.
