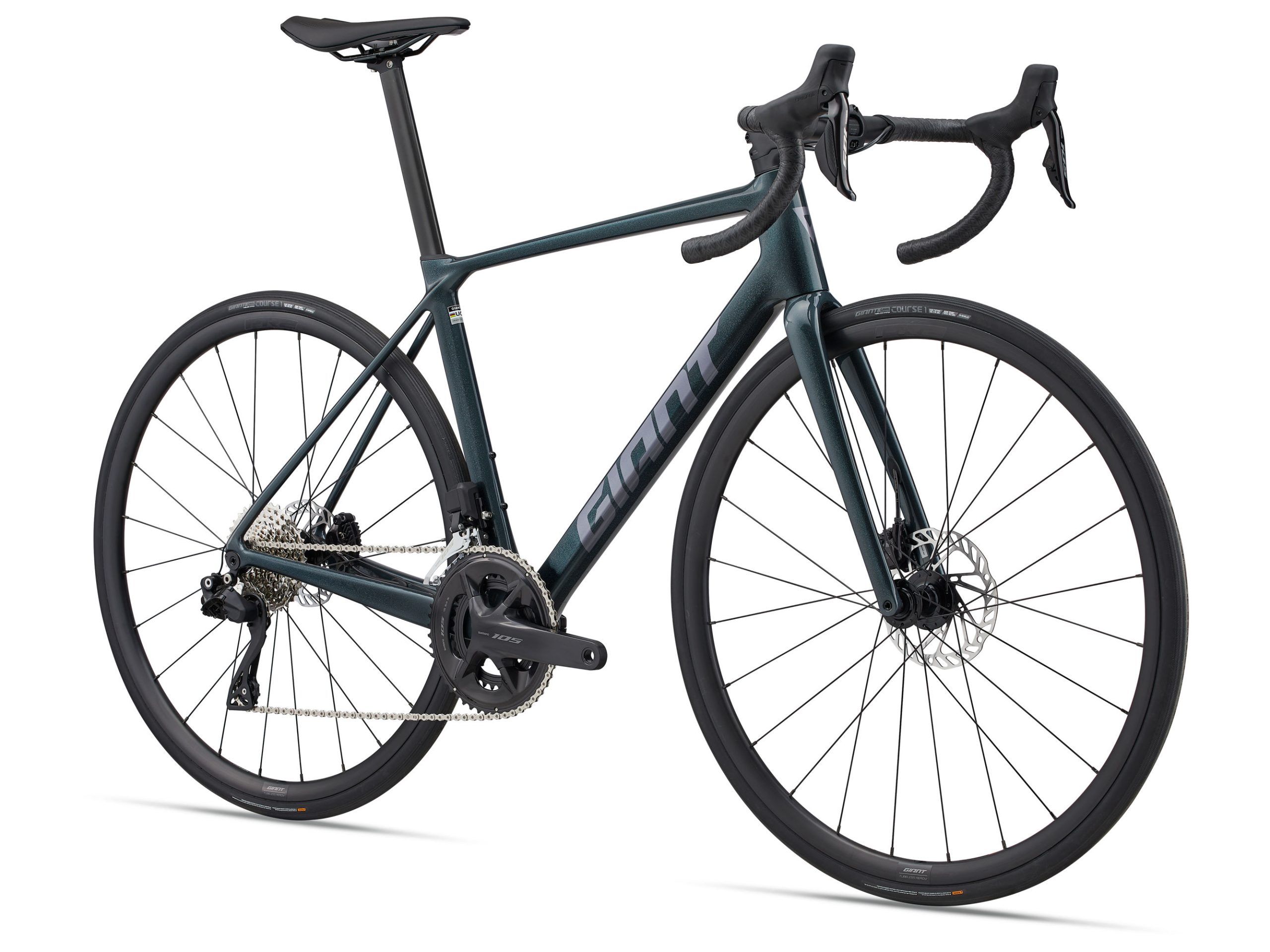

GIANT TCR ADVANCED 1 (10TH GEN)

RM14,800.00

SKU: N/A Categories: ,
Newly integrated components including the Contact AeroLight stem create a sleeker, more aero profile. The Variant seatpost adds just enough compliance for a balanced, race-tuned feel on the road, while generous tire clearance (up to 33mm) and compliant wheels keep you rolling with speed on smooth or bumpy roads.
KEY PERFORMANCE FACTORS

System Optimization

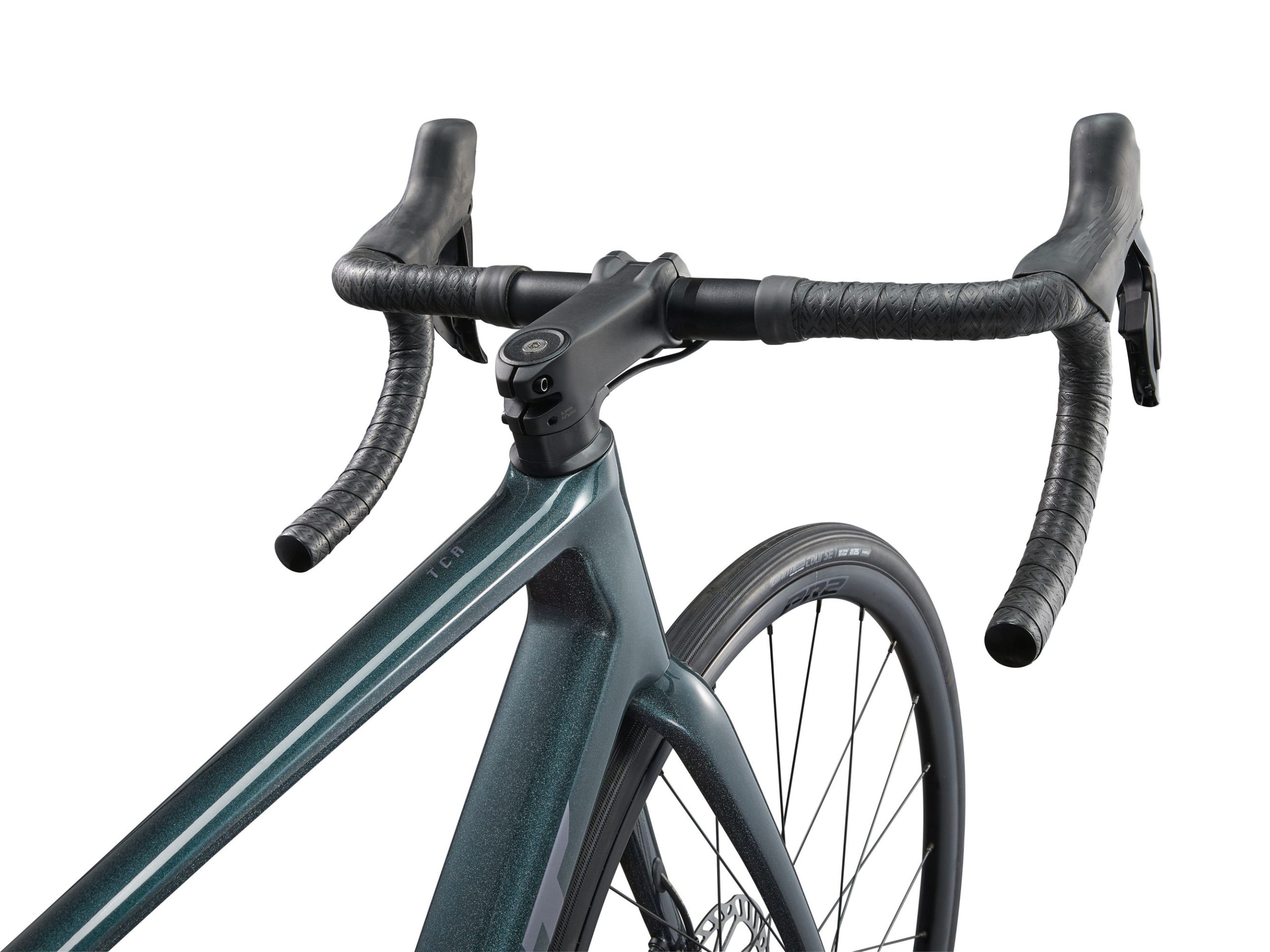

The frameset, wheels, cockpit and other parts were engineered, developed and tested together to perform as a system. The all-new Contact AeroLight stem allows for cable
routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup.

Winning Efficiency

Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike
delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.

Integrated Aerodynamics

All tube shapes were engineered and developed using Computational Fluid Dynamics (CFD) modeling and wind-tunnel testing. From the truncated ellipse shape of frameset
tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous
generation.

Colour

Asphalt Green
Size

M, ML, S, XS

Sizing Guide

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.

TCR Advanced & Advanced Pro Disc (10th Gen)

XS S M ML L XL
A Seat tube length 425 445 470 500 530 560
B Seat tube angle (degrees) 74.50 74.00 73.50 73.00 73.00 72.50
C Top tube length 520 535 550 565 580 600
D Head tube length 120 130 145 165 185 200
E Head tube angle (degrees) 71.00 72.25 73.00 73.00 73.00 73.00
F Fork rake 45 45 45 45 45 45
G Trail 72 64 59 59 59 59
H Wheelbase 976 977 980 991 1006 1020
I Chain stay length 405 405 405 405 405 405
J Bottom bracket drop 72 69.5 69.5 67 67 67
K Stack 517 528 545 562 581 596
L Reach 376 383 388 393 402 412
M Stand over height 703 722 743 771 798 822
N Handlebar width 400 400 420 420 440 440
O Stem length 80 90 100 110 110 120
P Crank length 170.0 170.0 172.5 172.5 175.0 175.0
Q Wheel size 700C 700C 700C 700C 700C 700C
*All measurements shown are in millimetres unless otherwise stated.

Specifications

  • Sizes
    XS, S, M, ML, L, XL
  • Colors
    Asphalt Green, Mars Dust
  • Frame
    Advanced-Grade Composite, 12x142mm thru-axle, disc
  • Fork
    Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
  • Shock
    N/A
  • Handlebar
    Giant Contact (XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm)
  • Bar Tape
    Giant Stratus Lite 2.0
  • Stem
    Giant Contact AeroLight (XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm)
  • Seatpost
    Giant Variant, composite, -5/+15mm offset
  • Saddle
    Giant Approach
  • Pedals
    N/A
  • Shifters
    Shimano 105 Di2 ST-R7170
  • Front Derailleur
    Shimano 105 Di2 FD-R7150
  • Rear Derailleur
    Shimano 105 Di2 RD-R7150
  • Brakes
    Shimano 105 Di2 hydraulic BR-7170, Giant MPH rotors [F]160mm, [R]140mm
  • Brake Levers
    Shimano 105 Di2 ST-R7170
  • Cassette
    Shimano 105, 12-speed, 11×34
  • Chain
    KMC X12L-1

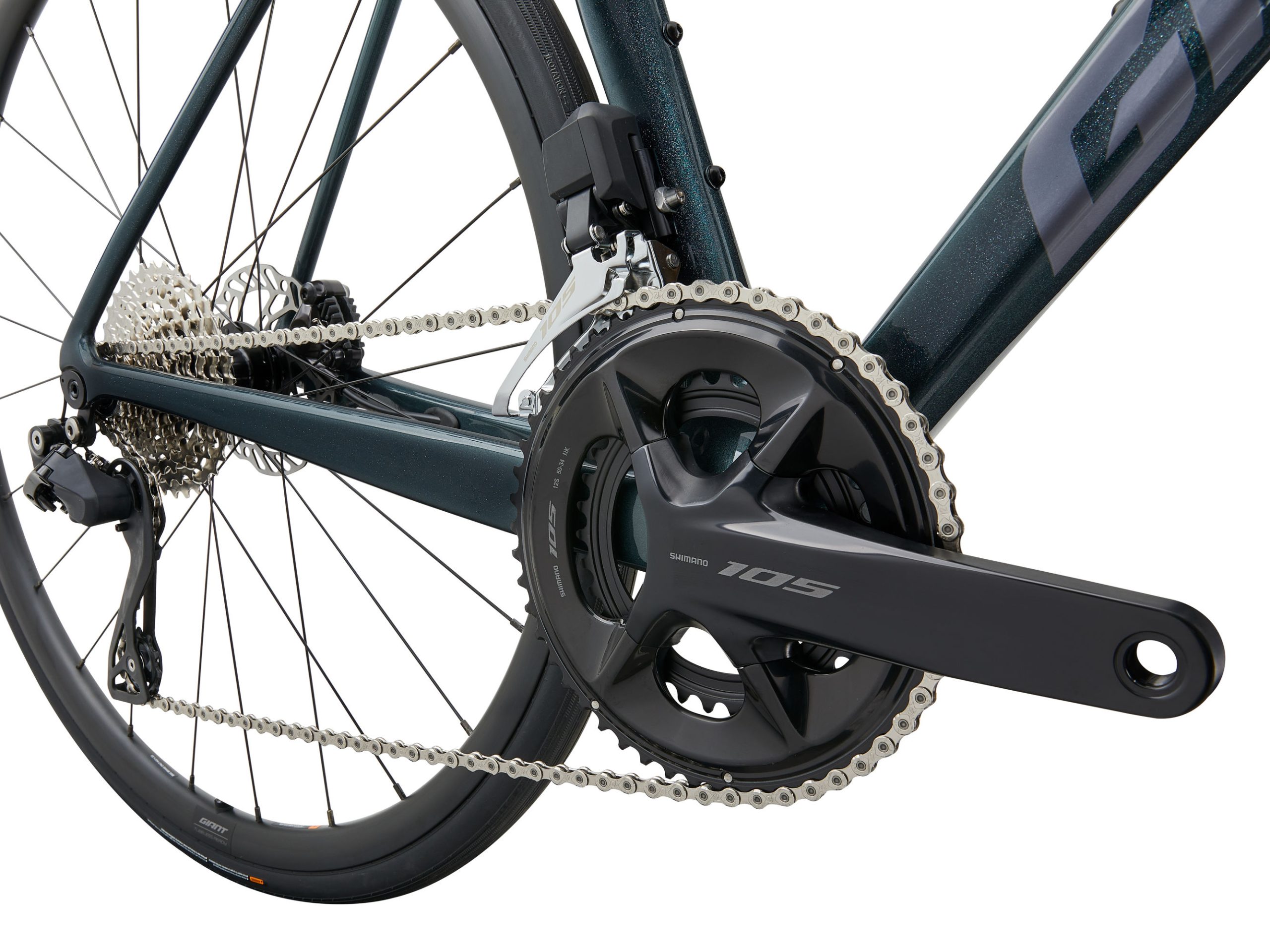

  • Crankset
    Shimano 105, 36/52 (XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm)
  • Bottom Bracket
    Shimano, press fit
  • Rims
    Giant P-R2, [F]36mm, [R]36mm
  • Hubs
    12mm thru-axle
  • Spokes
    stainless
  • Tires
    Giant Gavia Course 1, tubeless, 700x25c (28mm), folding
  • Extra
    tubeless prepared, 33mm max tire size
  • Weight
    ~8.45kg (Size M)

*All specifications and prices listed are subject to change without notice.
