NOW EVEN FASTER, THIS AERO ROCKETSHIP IS BUILT FOR SPEED WHEN IT MATTERS MOST. THE REENGINEERED FRAMESET IS EVEN MORE ADEPT AT SLICING THROUGH WIND, AND IT’S ALSO LIGHTER THAN THE PREVIOUS GENERATION. THE RESULT? RACE-WINNING EFFICIENCY THAT’S HARD TO BEAT.
KEY PERFORMANCE FACTORS
Integrated aerodynamics
AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimises aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and Contact SLR Aero cockpit produce outstanding overall aero performance.
Easier Adjustability
All-new cable routing through the handlebar and frame makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.
Race-winning Efficiency
Advanced SL-grade composite frameset features Giant’s pro-level composite materials and manufacturing processes. The result is 225 grams of weight savings compared to the previous generation and an even greater stiffness-to-weight advantage.
Sizing Guide
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.


Propel Adv SL (3rd Gen)
|
|
XS |
S |
M |
ML |
L |
XL |
Seattube length |
680 |
710 |
740 |
770 |
790 |
820 |
Seattube angle (degrees) |
74.50 |
73.50 |
73.00 |
73.00 |
73.00 |
72.00 |
Toptube length |
520 |
535 |
550 |
565 |
580 |
600 |
Headtube length |
120 |
130 |
145 |
165 |
185 |
200 |
Headtube angle (degrees) |
71.00 |
72.3 |
73.00 |
73.00 |
73.00 |
73.00 |
Fork rake |
45 |
45 |
45 |
45 |
45 |
45 |
Trail |
72.1 |
64 |
59.2 |
59.2 |
59.2 |
59.2 |
Wheelbase |
976 |
977 |
980 |
991 |
1006 |
1020 |
Chainstay length |
405 |
405 |
405 |
405 |
405 |
405 |
Bottom bracket drop |
70 |
68 |
68 |
65 |
65 |
65 |
Stack |
517 |
528 |
545 |
562 |
581 |
596 |
Reach |
376 |
383 |
388 |
393 |
402 |
412 |
Standover height |
744 |
769 |
787 |
807 |
829 |
843 |
Handlebar width |
400 |
400 |
420 |
420 |
440 |
440 |
Stem length |
80 |
90 |
100 |
110 |
110 |
120 |
Crank length |
170.0 |
170.0 |
172.5 |
172.5 |
175.0 |
175.0 |
Wheel size |
700C |
700C |
700C |
700C |
700C |
700C |
Specifications
-
Sizes
XS, S, M, M/L
-
Colors
Rainbow White (Kristian Blummenfelt edition)
-

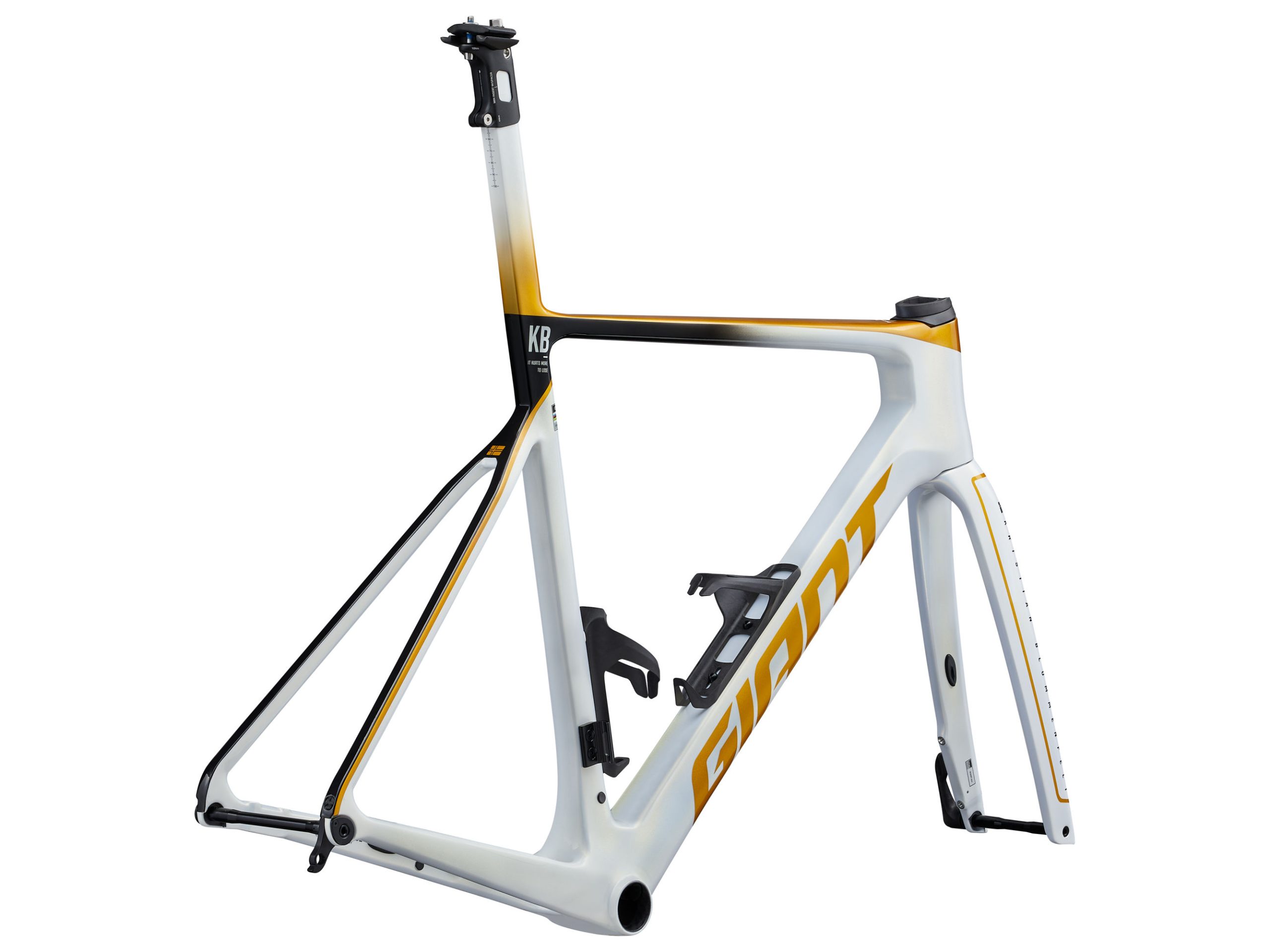

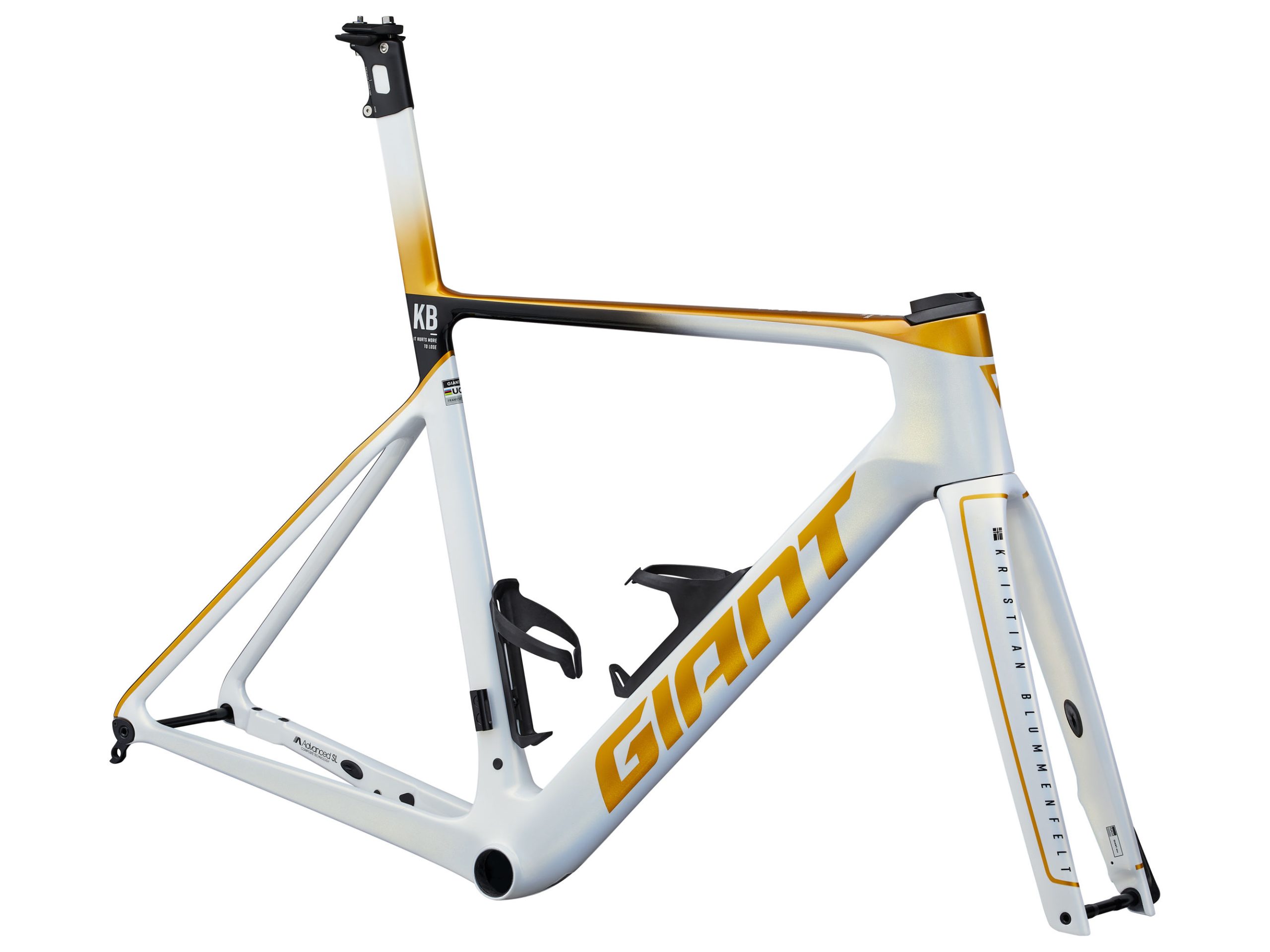

Frame
Advanced SL-Grade Composite, disc
-
Fork
Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, disc
-
Shock
N/A
-
Handlebar
[Sold Separately] Giant Contact SLR Aero XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
-
Grips
Stratus Lite 2.0
-
Stem
[Sold Separately] Giant Contact SLR Aero, OverDrive Aero XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
-
Seatpost
1. Integrated seatpost mast with carbon saddle rail clamp -5/+15mm offset
2. Regular integrated seatpost mast. Accommodates up to 20mm of integrated seatpost mast spacers.
3. Long integrated seatpost mast. Increases stack height by 15mm and accommodates extra 25mm of integrated seatpost mast spacers
4. Integrated seatpost mast spacers. 2x 10mm. 1x 5mm. 1x3mm. 2x1mm.
-
Extras
1. computer mount
2. 2x water bottle cages
3. Tubeless prepared, 30mm max tire size
*All specifications and prices listed are subject to change without notice.
**Price does not include handlebar and stem
