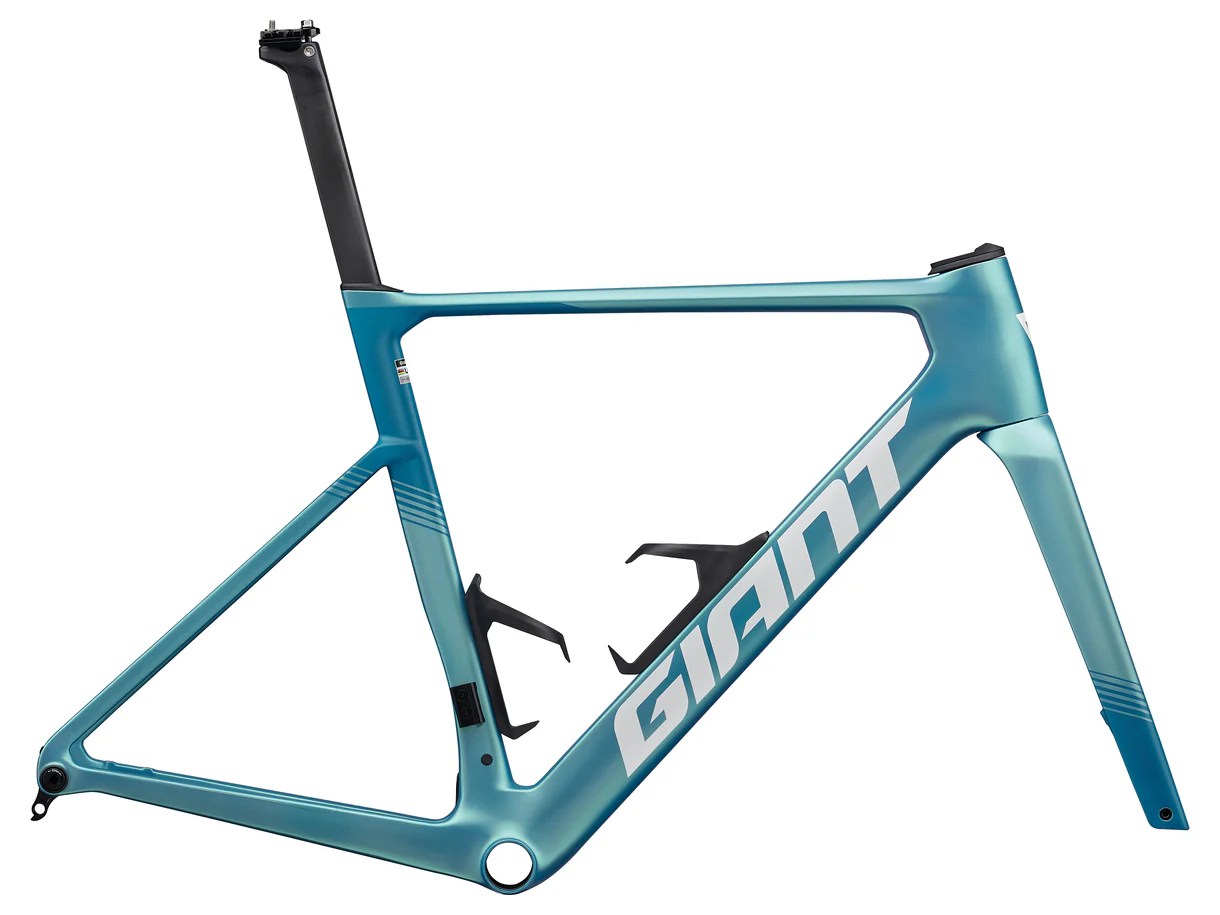

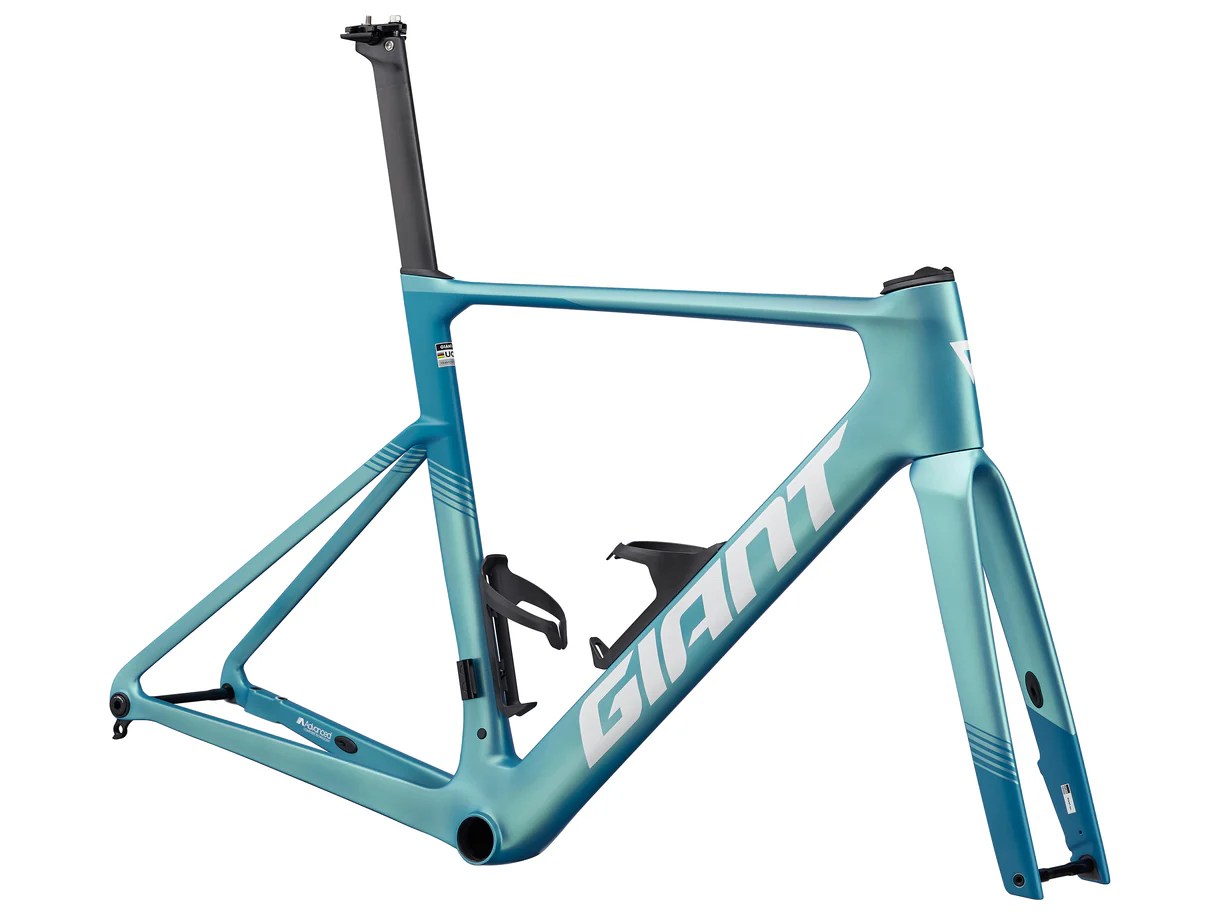

GIANT PROPEL ADVANCED PRO FRAMESET (4TH GEN)

RM10,000.00

SKU: N/A Categories: , , ,

Hang with the fast group, go for the sprint, cheat the wind on a solo ride. The new Propel Advanced Pro is now lighter, smoother and more efficient, delivering higher speeds to help you maximize every effort.

Key Performance Factors

Instant Speed

In the moments when explosive speed matters most—launching an attack, chasing a break, or sprinting for the finish line—the new Propel Advanced Pro is quicker and more dynamic than ever. The frameset is lighter than the previous generation with greater torsional stiffness and pedaling stiffness—so you feel instantaneous reaction when you make your move.

SUSTAINED SPEED

Engineered for full-bike compliance, the new Propel Advanced Pro frameset delivers a significantly smoother ride when you’re rolling in the group or piling up training miles. The Vector seatpost offers greater compliance compared to the previous generation. The fork helps absorb bumps and vibrations up front. And additional tire clearance allows for high-volume tires up to 32mm, further smoothing out the ride to help you maintain higher speeds with less fatigue.

TOP-END SPEED

The frameset, including the frame, fork, Vector seatpost, and aero bottle cages, are designed to be part of a system to lower total resistance when you’re pushing high speeds in the wind—whether you’re on a solo break, taking pulls at the front, or powering away on a climb. OverDrive Aero technology includes a slim, tapered head tube paired seamlessly with a D-shaped fork steerer tube and spacers. Brake and shifter cables can be internally routed through the frame and fork, keeping them hidden from the wind.

COLOR

GLACIER TEAL

SIZE

XS, S, M

Sizing Guide

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.

Propel Advanced/Advanced Pro (4th Gen)

XS S M ML L XL
A SEAT TUBE LENGTH (mm) 484 505 528.5 554 576 595
B SEAT TUBE ANGLE 74.5° 74.0° 73.5° 73.0° 73.0° 72.5°
C TOP TUBE LENGTH (mm) 520 535 550 565 580 600
D HEAD TUBE LENGTH (mm) 115 127 145 165 185 200
E HEAD TUBE ANGLE 71.5° 72.5° 73.0° 73.0° 73.0° 73.0°
F FORK RAKE (mm) 45 45 45 45 45 45
G TRAIL (mm) 67.8 61.4 58.3 58.3 58.3 58.3
H WHEELBASE (mm) 971 973 980 990 1006 1020
I CHAIN STAY LENGTH (mm) 405 405 405 405 405 405
J BOTTOM BRACKET DROP (mm) 72 72 69.5 69.5 67 67
K STACK (mm) 515 530 546 565 582 596
L REACH (mm) 377 383 388 392 402 412
M STANDOVER HEIGHT 746 764 787 808 832 847
N HANDLEBAR WIDTH (mm) 380 380 400 400 420 420
O STEM LENGTH (mm) 80 90 100 110 110 120
P CRANK LENGTH (mm) 165 165 170 170 172.5 172.5
Q WHEEL SIZE 700C 700C 700C 700C 700C 700C

Specifications

Specs

Frame
Sizes XS, S, M, M/L, L, XL
Colours Glacier Teal
Frame Advanced-grade Composite, 12x142mm thru-axle, disc
Fork Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Components
Seatpost Giant Vector, composite, -5/+15mm offset

Wheels
Extras water bottle cages, 32mm max tire size
