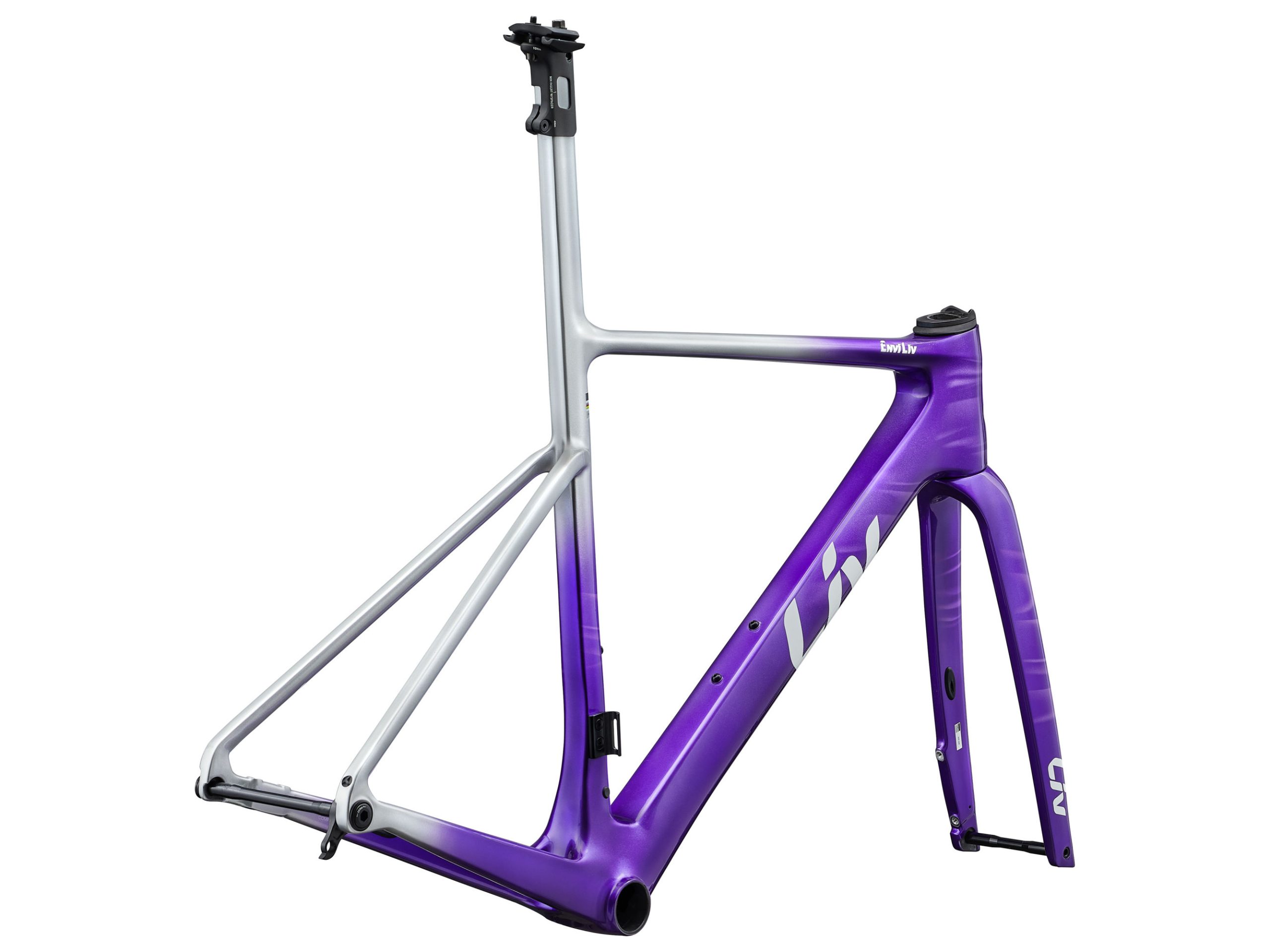

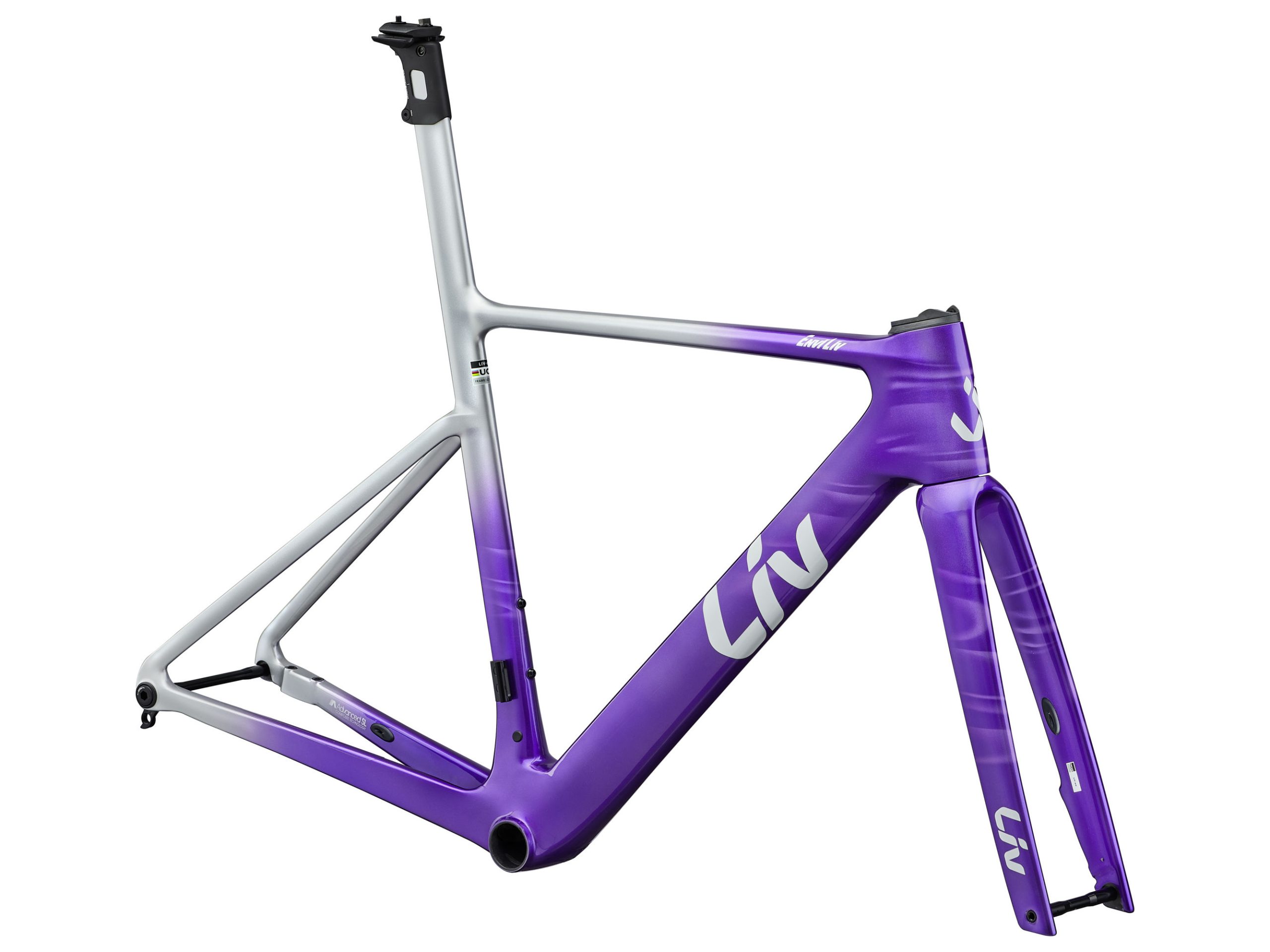

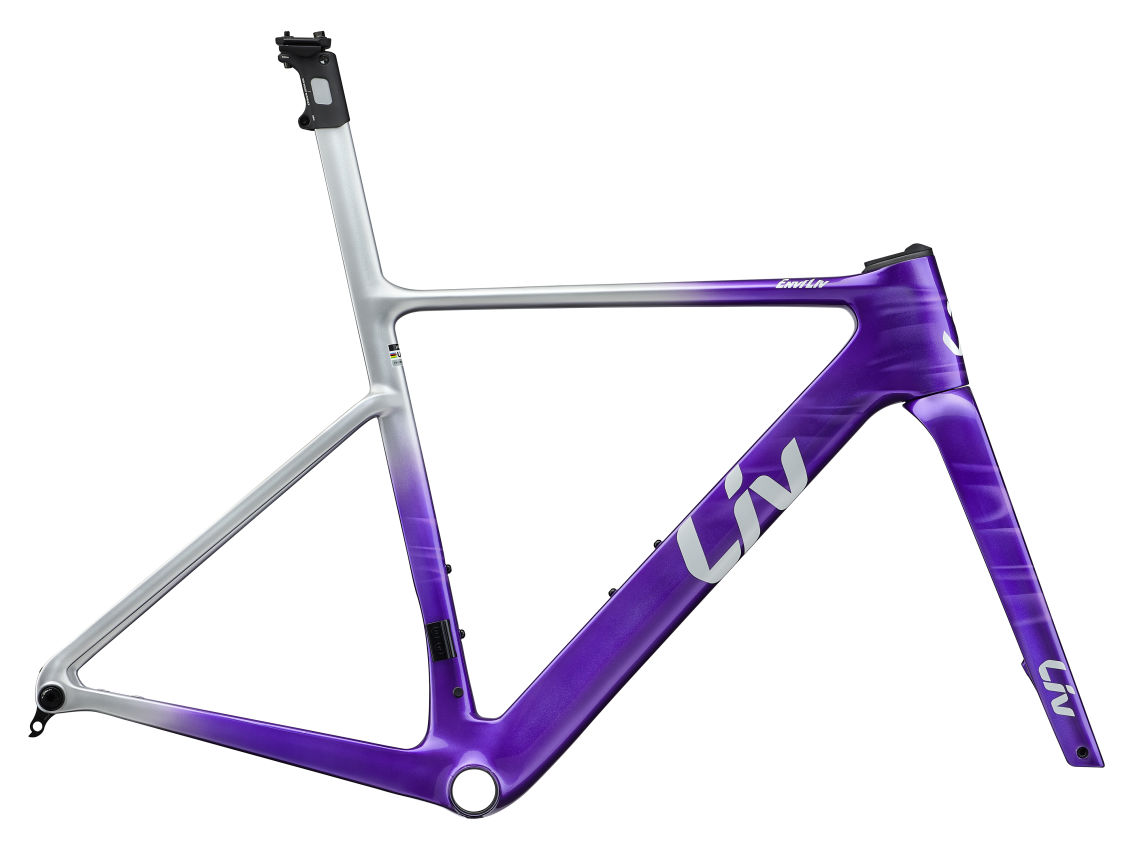

EnviLiv Advanced SL FRAMESET TEAM

RM15,800.00

SKU: N/A Categories: , , ,

For WorldTour sprinters and high-speed triathletes who know that every second counts, the EnviLiv Advanced SL was made to overtake competitors, surpass expectations, and transcend reality. Designed with next-level, full-system integration for refined aerodynamics and reduced weight, this is our fastest, most efficient, most ambitious EnviLiv to date.

Key Performance Factors

Race-Tuned Efficiency

Reengineered for lighter weight and greater efficiency, the all-new EnviLiv Advanced SL introduces an integrated seatpost (ISP) design that eliminates traditional seatpost hardware, reducing overall mass while enhancing ride feel through increased compliance and vibration damping. This is the first time ISP technology appears on the EnviLiv platform, bringing proven WorldTour performance benefits to Liv’s most advanced aero race bike.

System-Integrated Aerodynamics

The EnviLiv Advanced SL is designed as a complete aerodynamic system, with every component working together to reduce drag at race speed. From the aero frameset to the one-piece Liv Contact SLR Aero cockpit, wheelsystems, and tires, each element is integrated to optimize airflow across the entire bike. The result is aerodynamic performance that’s realized not in isolation, but as a unified system built for real-world racing.

Composed Control

Lowered seatstays add vertical compliance that smooths road vibration and improves aerodynamic efficiency, keeping the bike composed at speed when the road gets rough. With clearance for tires up to 32mm, the EnviLiv Advanced SL delivers added confidence across variable surfaces—without compromising precision, speed, or its race-ready character.

Highlights

Engineered as the ultimate expression of Liv’s aero road platform, the EnviLiv Advanced SL combines the lightest construction, full system integration, and race-proven technologies to deliver uncompromising speed, efficiency, and control at the highest level.

COLOR

NITRO PURPLE

SIZE

XS, S, M

Sizing Guide

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.

  • XXS
      145 cm  to  157 cm
  • XS
      152 cm  to  163 cm
  • S
      158 cm  to  169 cm
  • M
      164 cm  to  176 cm
bike diagram with measurements referenced in table that follows

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.

XXS XS S M
A Seat Tube Length (mm) 650 680 710 740
B Seat Tube Angle 75.0° 75.0° 74.5° 74.0°
C Top Tube Length (mm) 504 514.8 526.2 541.2
D Head Tube Length (mm) 100 115 130 150
E Head Tube Angle 70.0° 71.0° 72.0° 72.5°
F Fork Rake (mm) 49 49 49 49
G Trail (mm) 73.2 66.8 60.4 57.2
H Wheelbase (mm) 969.9 974.7 977 984.1
I Chain Stay Length (mm) 405 405 405 405
J Bottom Bracket Drop (mm) 73.2 66.8 60.4 57.2
K Stack (mm) 494.1 511.8 527 547.8
L Reach (mm) 365.6 372.9 377.8 382.9
M Stand Over Height (mm) 714.8 732.6 760.8 786.9
O Stem Length (mm) 80 80 90 100
P Crank Length (mm) 160 160 165 170

Specifications

Specs

Frame
Sizes XXS, XS, S, M, L
Colours Nitro Purple
Frame Advanced SL-grade composite, 12x142mm thru-axle, integrated seatpost, disc
Fork Advanced SL-grade composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Components
Seatpost Advanced SL-grade composite, integrated design, -5/+15mm offset

Wheels
Extras two aero bottle cages, 32mm max tire size, UDH compatible
